Show groups

To show groups in the floor_plan_16Floor Plan or table_circular_16Table Plan pane:

1.Click on the more_button_m button at the top-left of the pane.

2.Click on the group_16Groups button. Each group will be shown in a different colour (or combination of colours). You can change the colours used in the visualization_colours_16Visualization colours window.

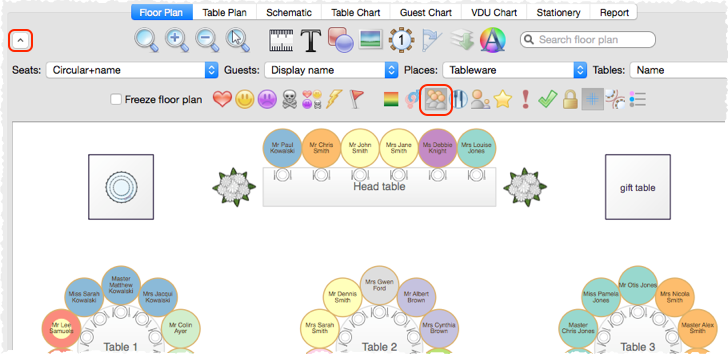

floor_plan_show_groups_m

Depress the colour_key_16 button at the top of the pane to show a colour key.
