Add a graphic/image/clipart to the floor plan
To add an image to the Floor plan pane either:
1.Drag the image from Windows Explorer or a web browser onto the Floor plan pane.
2.Double click on the image to change its size, rotation etc.

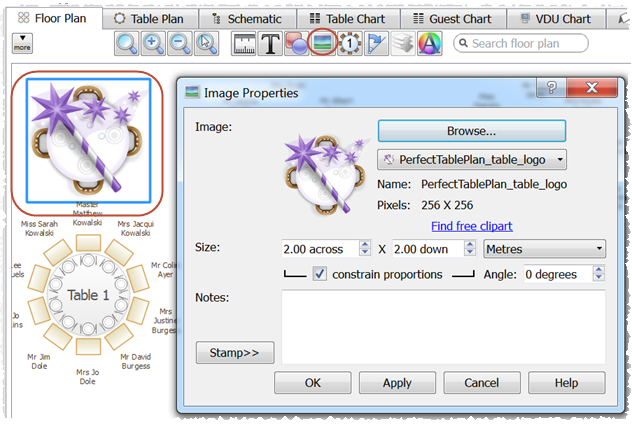

1.Click on the Insert Image button at the top of the Floor plan pane. The Insert Image window will appear.
2.Click on the Browse... button and select an image file.
3.Set the image Size on the floor plan.
5.Click on the image and drag it to the appropriate position.
